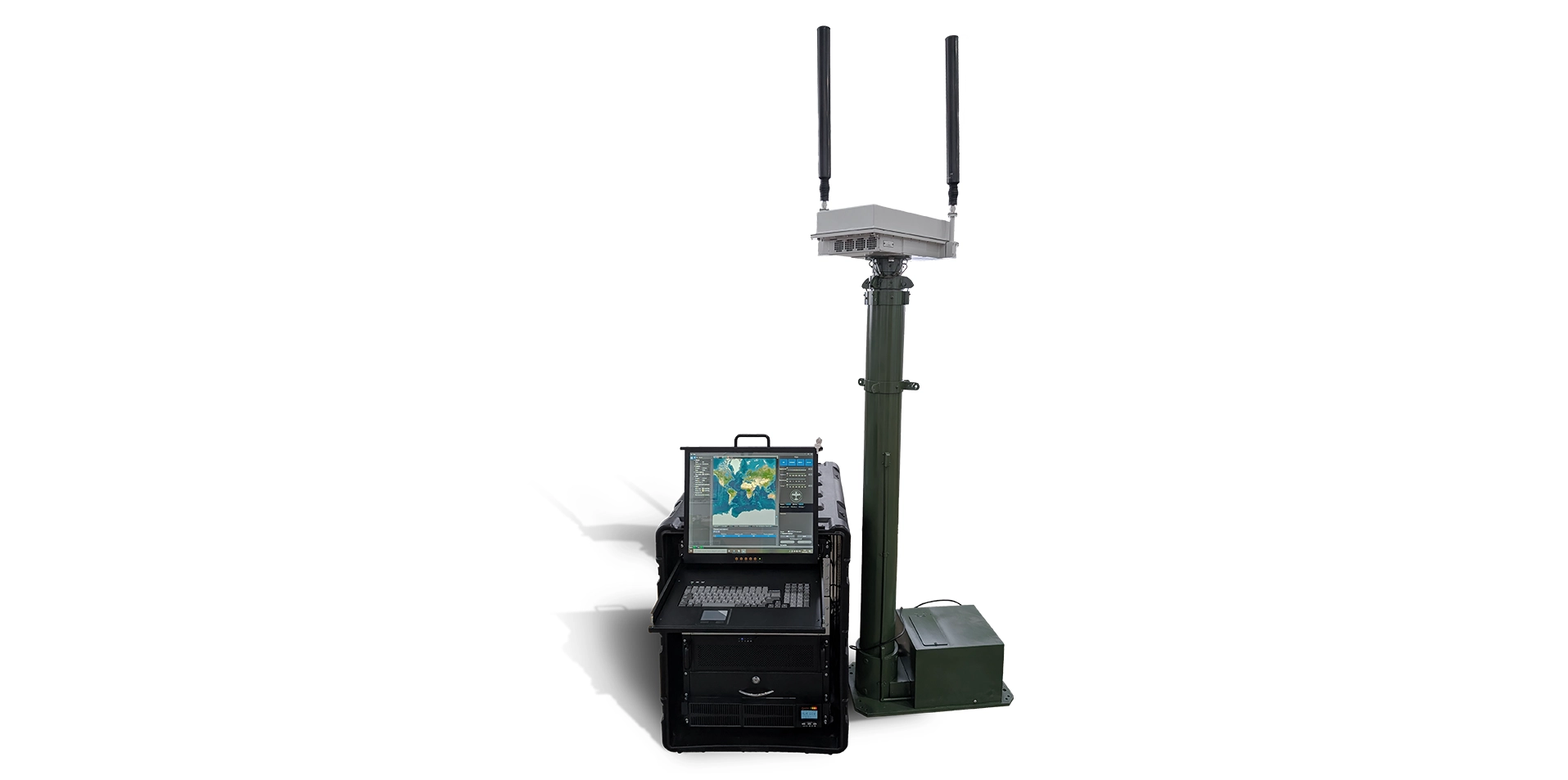

Designation

Deception of navigation receivers of airborne and ground-based platforms by generating a false navigation field based on real-time emission of spoofing signals equivalent to real GPS, GLONASS, BeiDou signals.

Employment modes

— protecting a sensitive facility against multicopters by generating a false navigation field around it (the transmitter continuously emits signals with false coordinates, without involvement of the operator. The multicopters fly away from the facility or drop at the edge of the false navigation field cupola).

— pulling the UAVs off their track by generating and varying a false navigation field in the area of the protected facility (the transmitter emits signals with false coordinates assigned and dynamically altered by the operator).



Specifications

Parameters	Values
Operating frequencies, GPS, GLONASS, BeiDou	L1, B1
Navigation equipment spoofing range	up to 40 km
Satellites simulated	up to 36
Output power automatic tuning range depending on target distance	30 dB
