Designation

Detection, recognition, direction-finding, positioning and incapacitation of unmanned aerial vehicles (UAV) by electronic countermeasures (ECM).

Capabilities

— detecting and tracking UAVs by radiation of their on-board transmitters (“downlink”: UAV — ground control station);

— recognition of the type and individual identification of UAVs;

— detecting and positioning the UAV ground control station (“uplink”: ground control station — UAV);

— plotting locations of the UAV and ground control station on an electronic map of the terrain;

— “uplink” and “downlink” communication jamming;

— jamming GPS, GLONASS, BeiDou, Galileo navigation receivers;

— deception (spoofing) of GPS, GLONASS, BeiDou navigation receivers, pulling UAVs off their flight routes;

— observation and tracking of UAVs in the near zone using TV and thermal imaging systems;

— detection, positioning and tracking UAVs using a radar system (option).

Specifications

Parameters	Value
Frequency range	100–6000 MHz
Range of reconnoitering UAV transmitters	up to 50 km
Range of jamming UAV receivers	up to 30 km
Range of reconnoitering the ground control station signals	up to 10 km
Range of jamming the ground control station receiver signal	up to 10 km
Range of jamming UAV navigation receivers	up to 40 km
Range of spoofing UAV navigation receivers	up to 40 km
Types of communication between stations	VHF, 3G/4G, wire
Setup (teardown) time	7 min
Crew	4 men

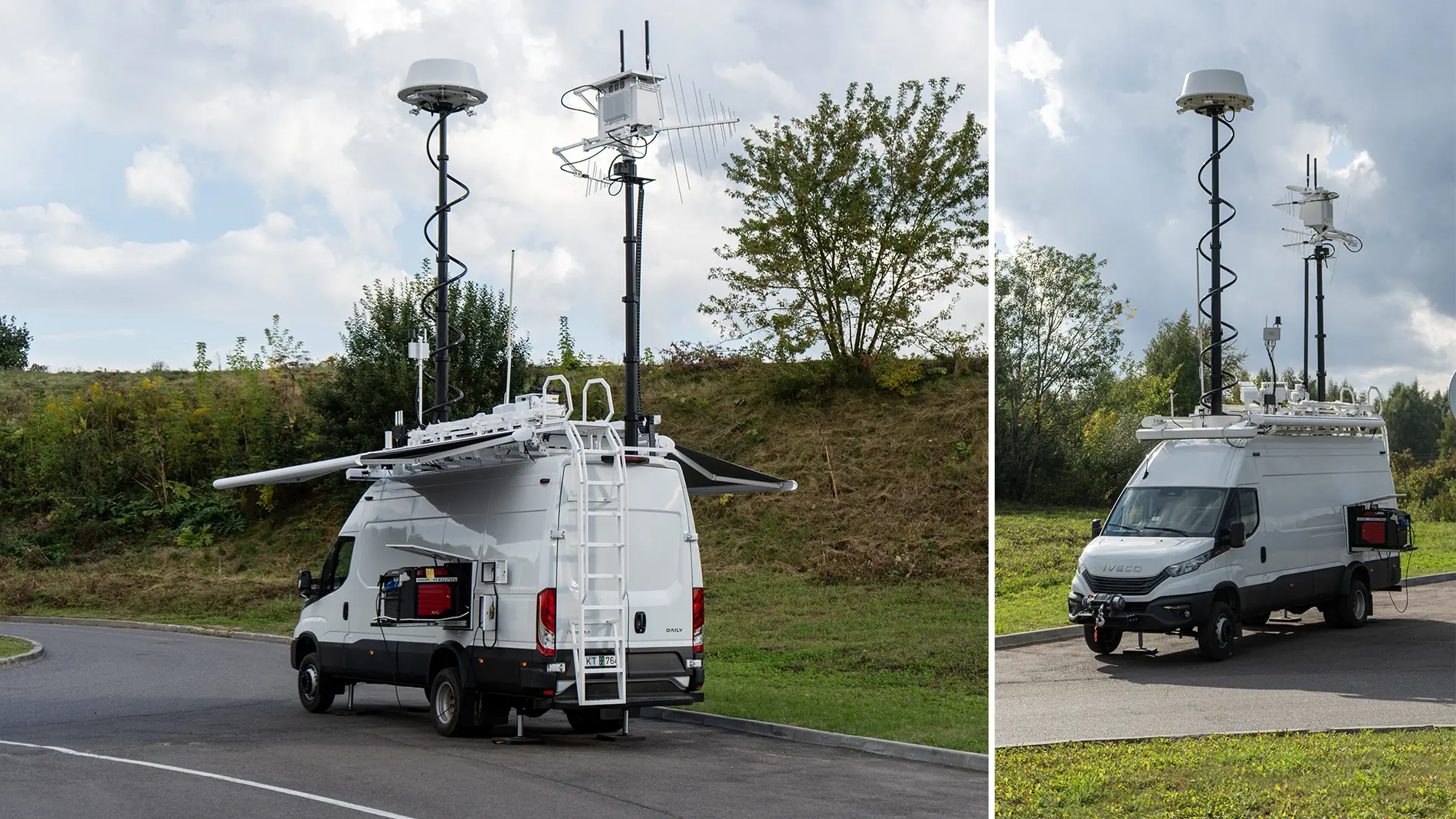

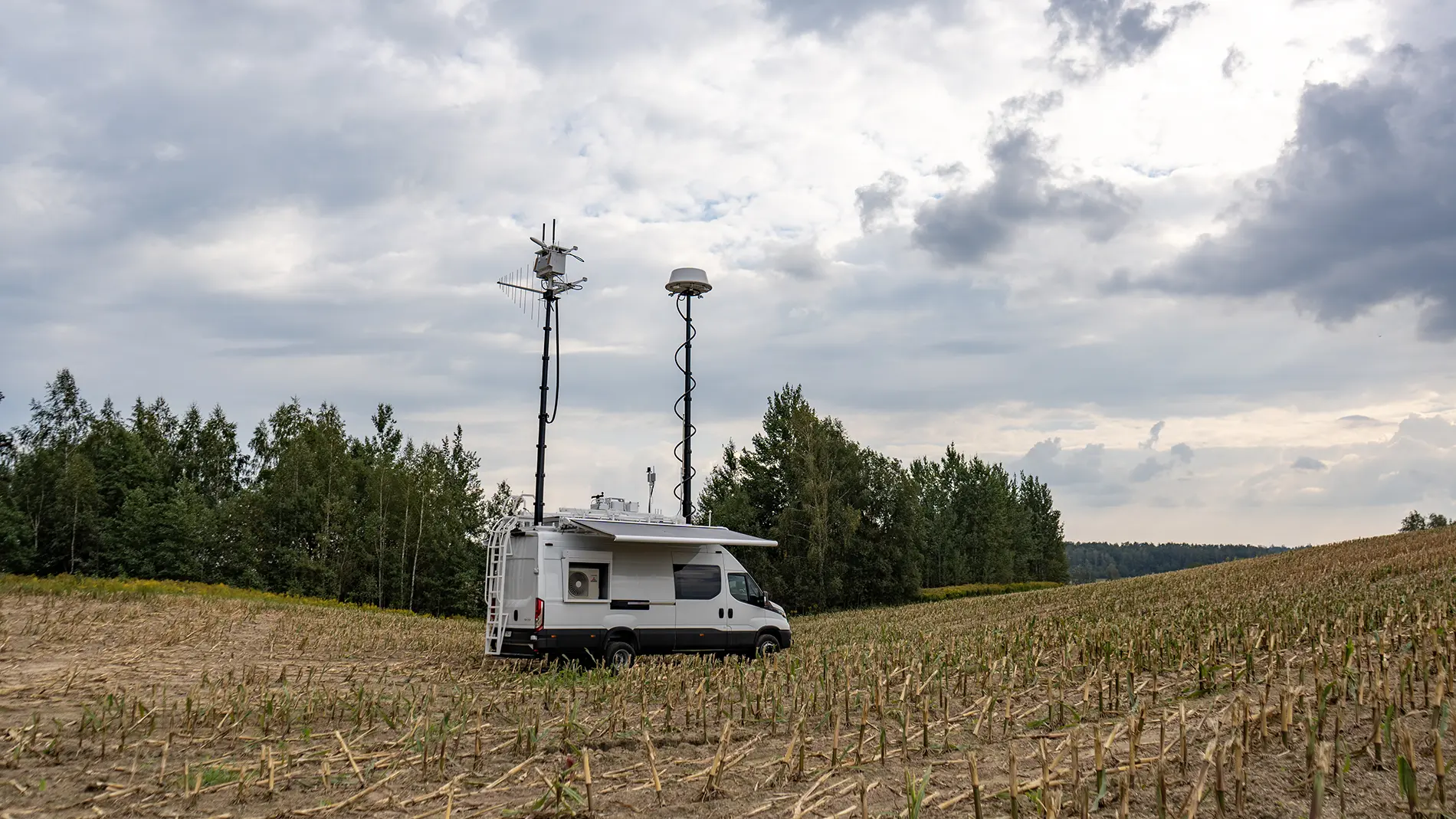

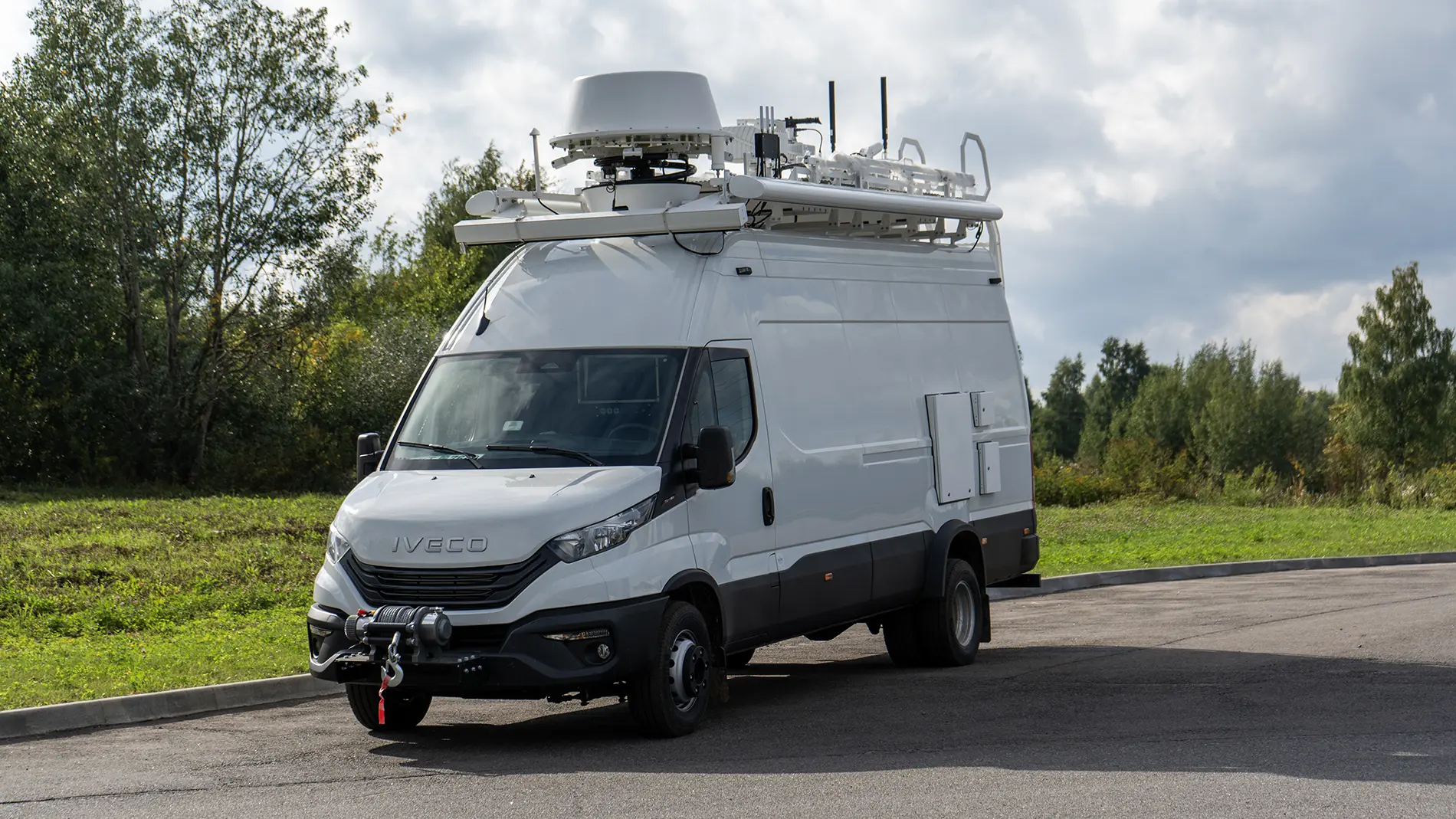

Transporter vehicle	Ford Transit, Mercedes Sprinter, Iveco Daily vans, MAZ-631705 truck, standard 20' container
