Designation

Controlling HF and VHF/UHF/SHF-band jamming stations and radio monitoring (COMINT/ELINT) stations, automated exchange of information with a higher-echelon control post (in Battalion Command Post operation mode).

Main functions

— automated collection, processing and storage of intelligence on the detected radio emission sources (RES) from the subordinated jamming and radio monitoring stations;

— calculation of RES coordinates using the bearings obtained;

— display of the tactical and radio electronic environment on a digital terrain map;

— automated target distribution and target designation to subordinated jamming stations;

— automated data sharing with an identical control post acting as subordinated or higher-echelon control post;

— automated monitoring of jamming performed by the subordinated jamming stations;

— solution of informational and computational tasks in planning the employment of an Electronic Warfare Complex.

Specifications

Parameters	Value
Frequency range of jamming and radio monitoring stations controlled	1.5–6000 MHz
Radio monitoring and jamming stations controlled	up to 12

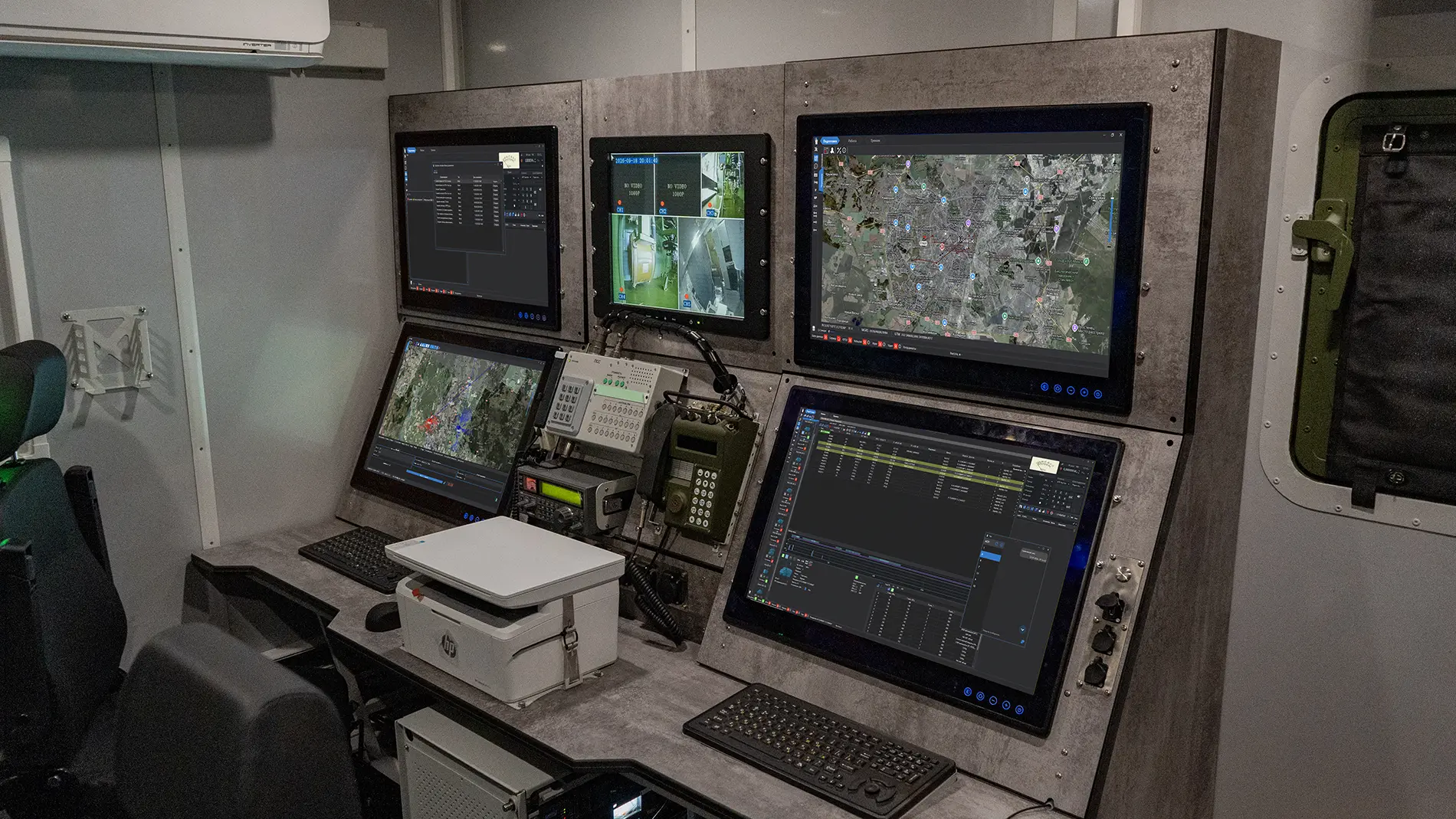

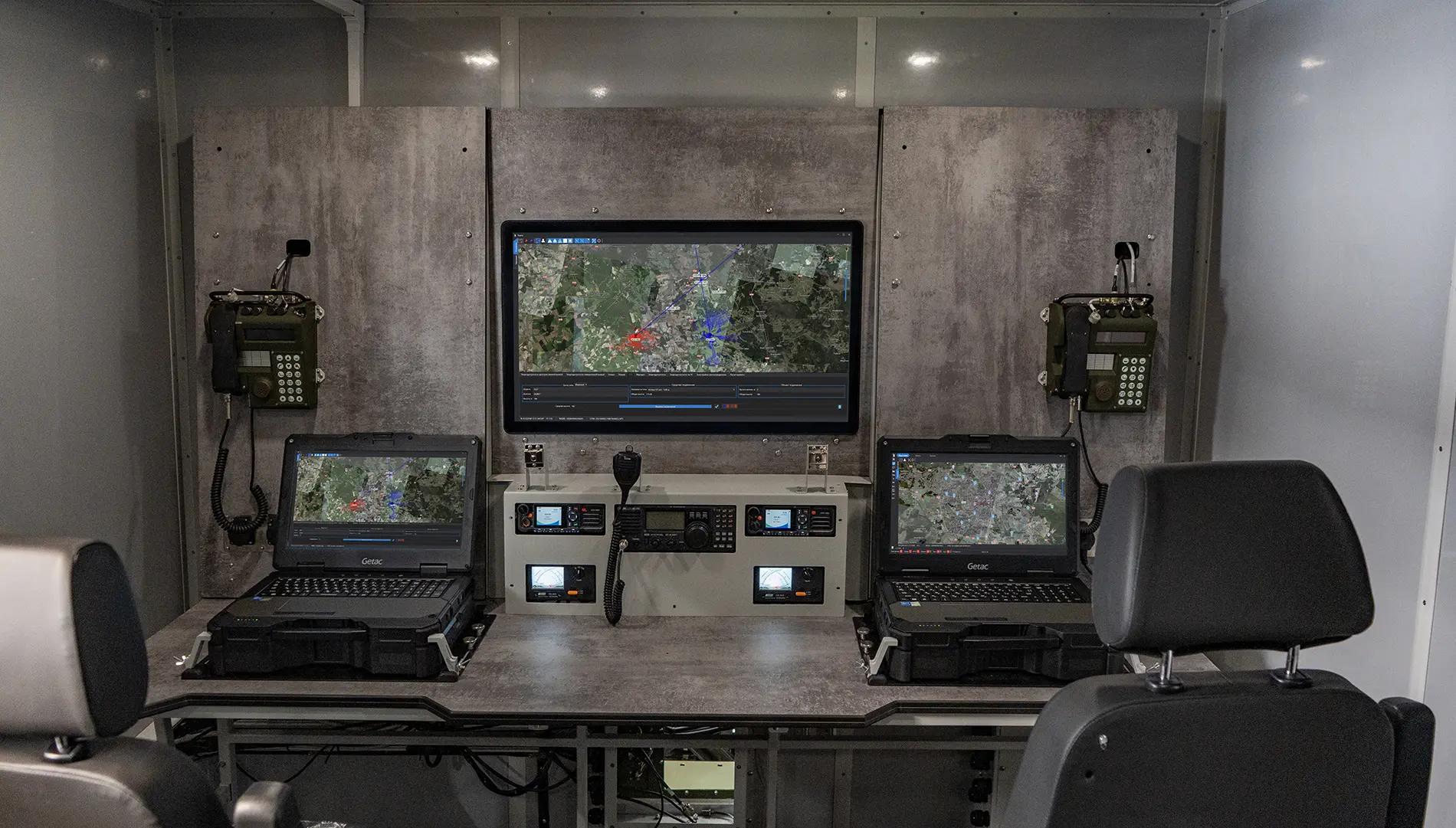

Automated workstations	3
Information and computational tasks resolved	30
Telecoded info exchange channels	8
Information transmission range:
via radio relay	up to 20 km
via VHF communication	up to 40 km
via HF radio using surface waves	up to 60 km
Crew	4 men
Setup (teardown) time	20 min
