Designation

Detection and direction-finding of multicopters by signals of their onboard radio transmitters.

Composition

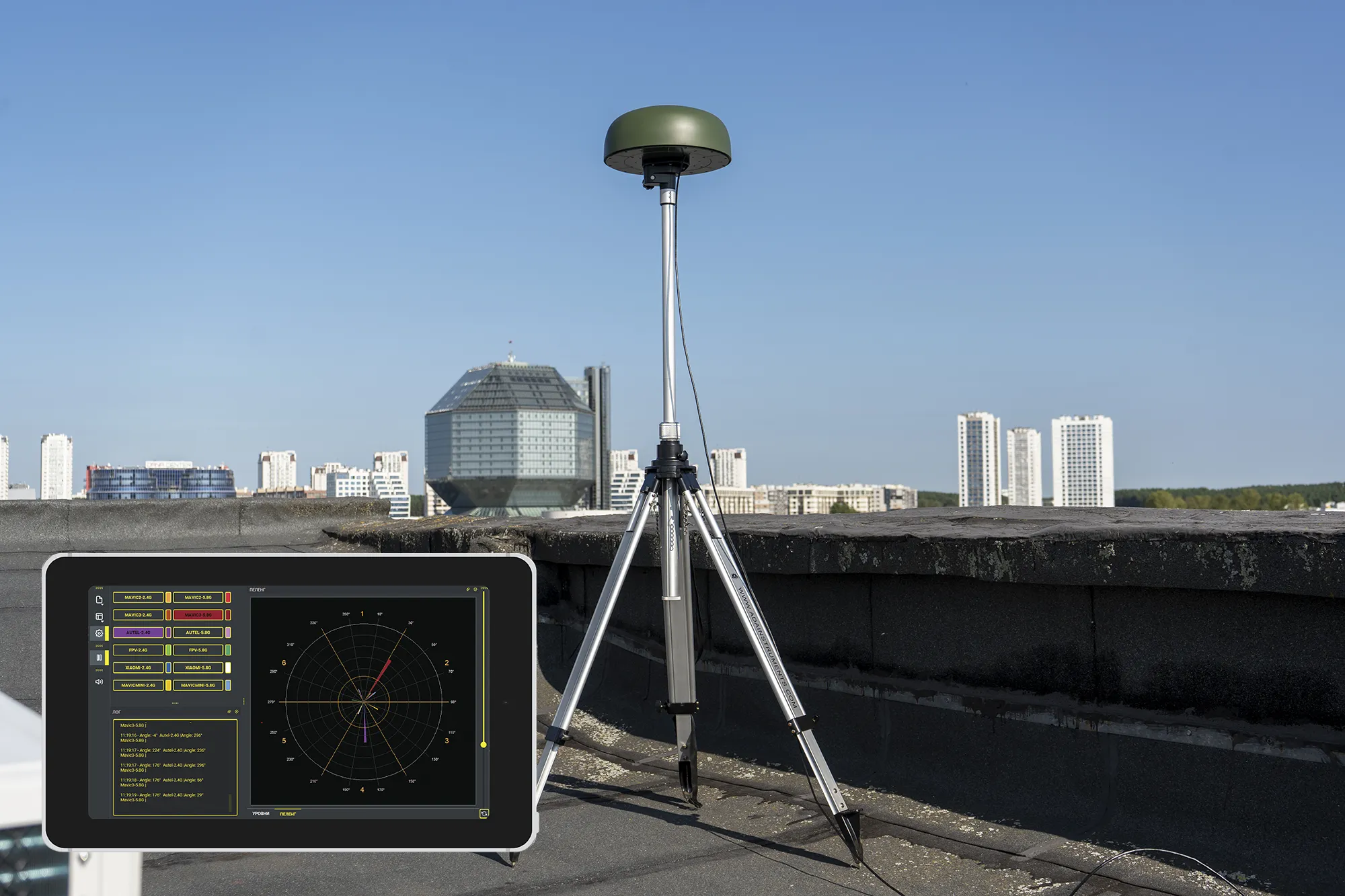

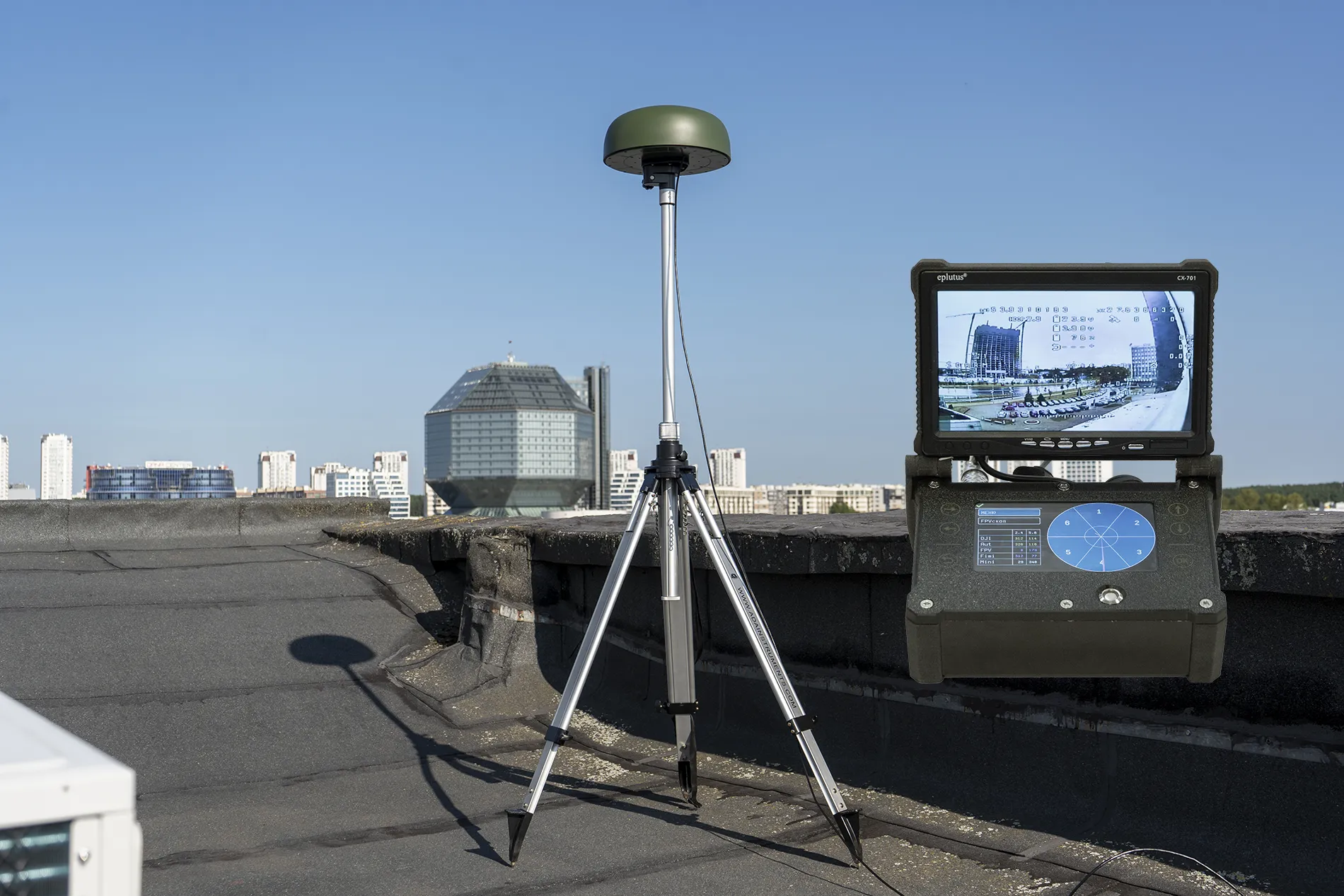

— “Shapel-D” — multicopter signal detector;

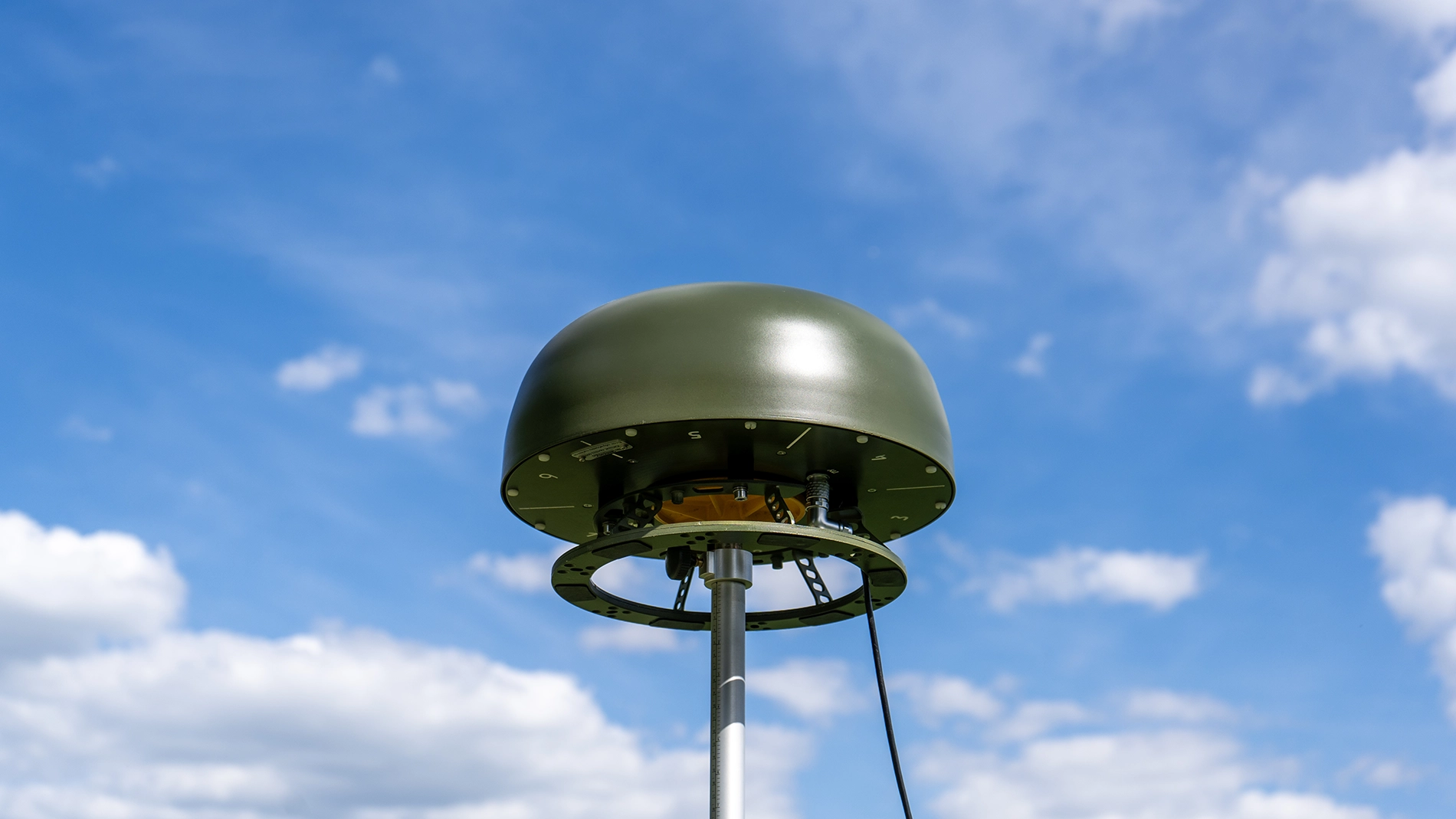

— “Shapel-DF” — multicopter signal direction-finder (up to 7 sets);
— “Shapel-CP” — Complex control post.

Capacities

— automatic detection, recognition and direction-finding of multicopter signals by emission from their on-board radio transmitters;
— automatic detection and interception of signals of FPV-multicopter analog onboard video transmitters;

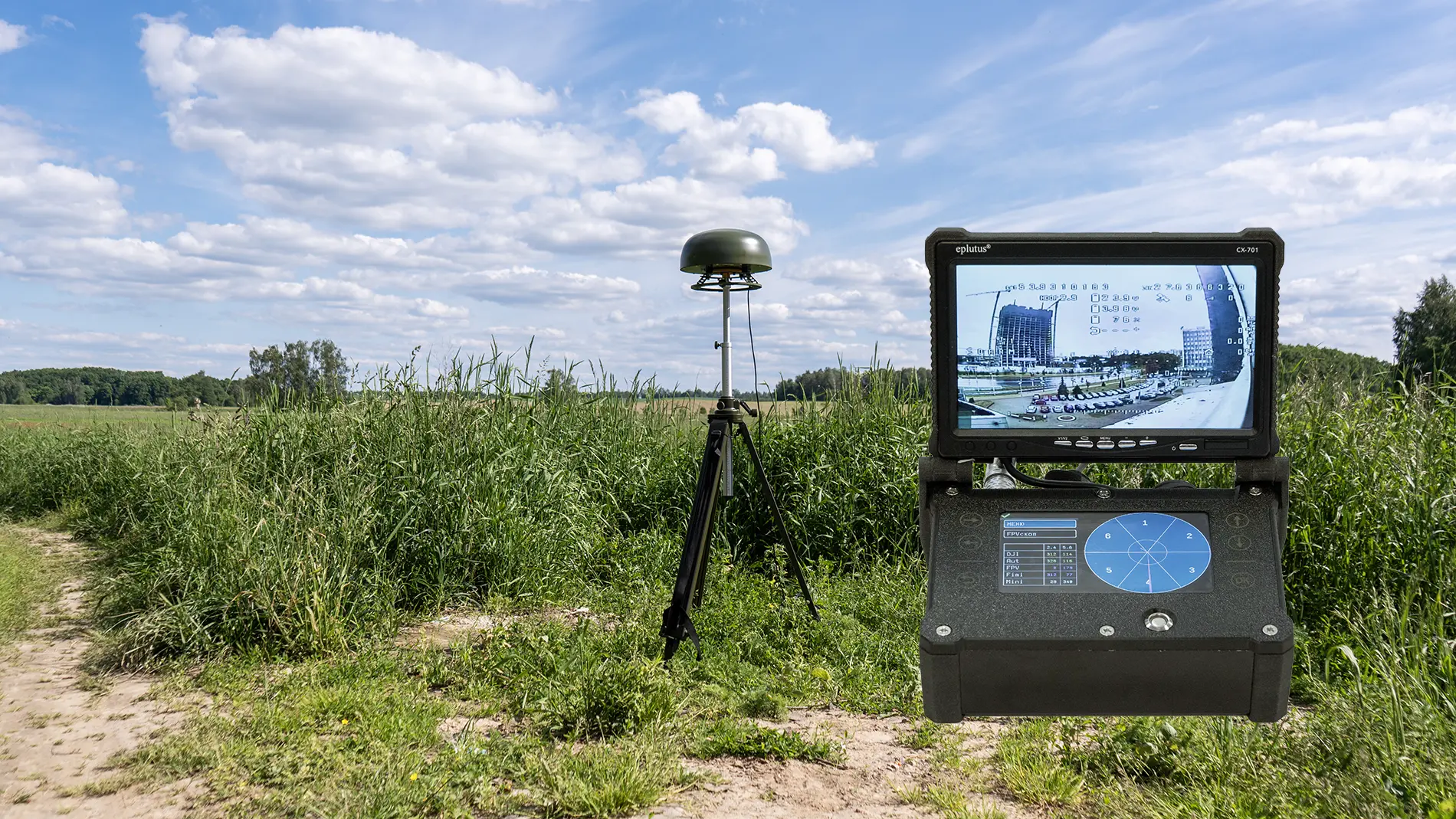

— display, on the screen, of video information and telemetry of FPV-multicopters;

— audio notification of the operator on detection of multicopter signals;

— indication of multicopter signal levels, bearings and intercepted video streams on the remote controller;
— capability to control and display information on the control post computer connected via Ethernet.

Specifications

Parameters	Value
Operating frequency range	900–6000 MHz
Detected multicopter types	DJI, Autel, Keep, FIMI, digital/analog FPVs
Multicopter detection range:
at 900–2500 MHz	up to 2000 m
at 2500–6000 MHz	up to 1000 m
Multicopter direction-finding accuracy (RMSE)	no worse than 5°
Power supply	network 220 V; vehicle on-board network 12/24 V; external battery
