Designation

Detecting, direction-finding and countering multicopters.

Employment mode

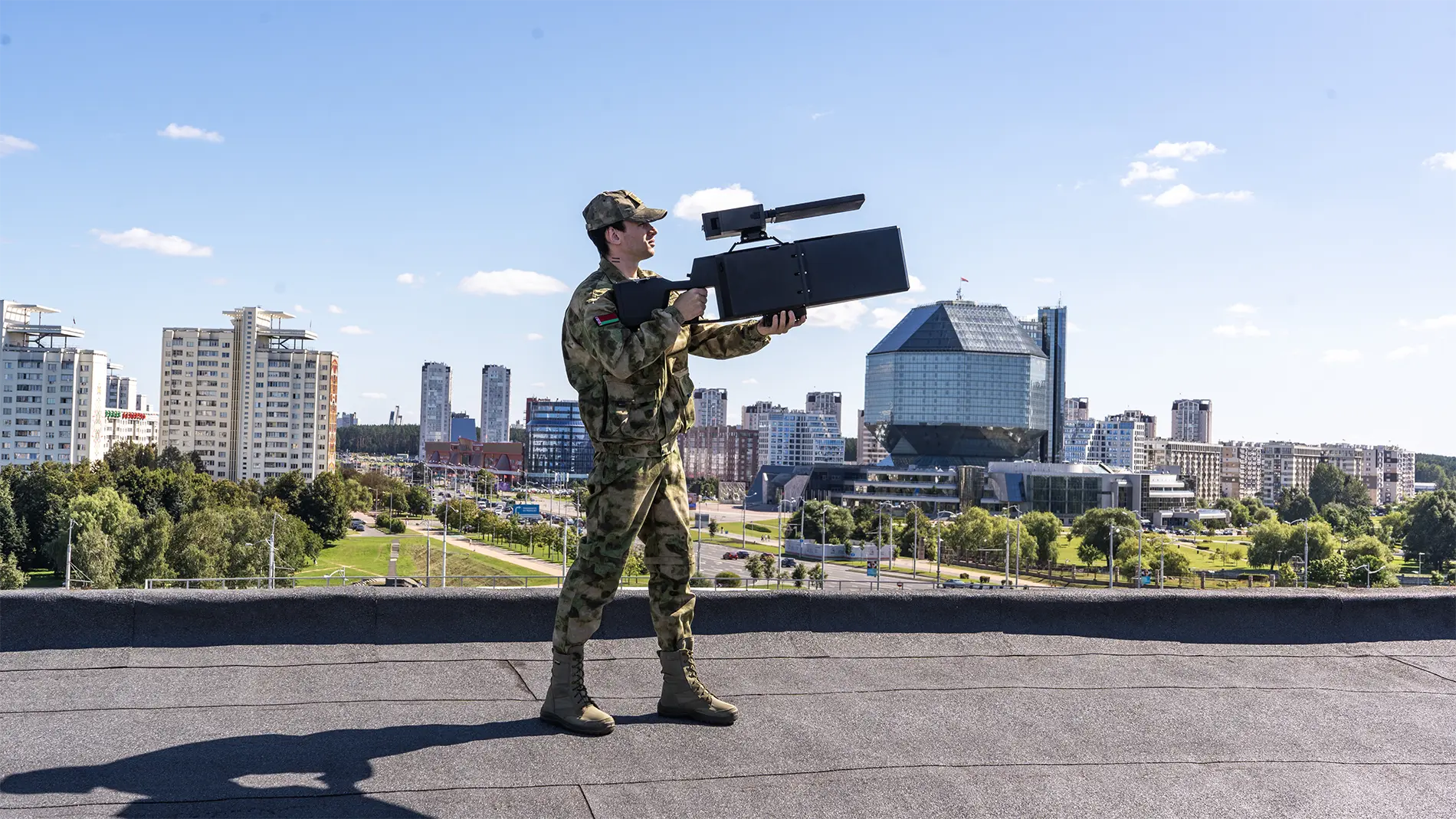

When a multicopter appears, the portable detector “Zvonok”, included in the delivery set and carried by the operator, gives an alert signal. With the help of the “Groza-R5” gun, the operator locates the multicopter and then switches on the jamming mode of the control, data transmission and navigation channels of GPS, GLONASS, BeiDou, Galileo systems. Depending on its type, the multicopter makes an emergency landing, falls down or flies back to the take-off point.

Specifications

Parameters	Value
Frequency bands of the detected multicopter emissions	2400–2485 MHz; 5150–5850 MHz
Multicopter detection range	up to 2 km
Frequency bands of the jammed multicopter control channels	430–440 MHz; 700–928 MHz; 1095–1170 MHz; 2400–2483.5 MHz; 5150–5250 MHz; 5725–5850 MHz
On-board GPS (L1), GLONASS (L1), BeiDou (E1), Galileo (E1) navigation receiver jamming frequency ranges	1170–1290 MHz; 1559–1610 MHz
Range of multicopter navigation equipment jamming	minimum 1 km
Range of multicopter control channels jamming	up to 0.5 km
Power supply	3 changeable batteries
Continuous radiation time	minimum 30 min
Weight	8 kg
Option	thermal sight with video registration and playback function
