Designation

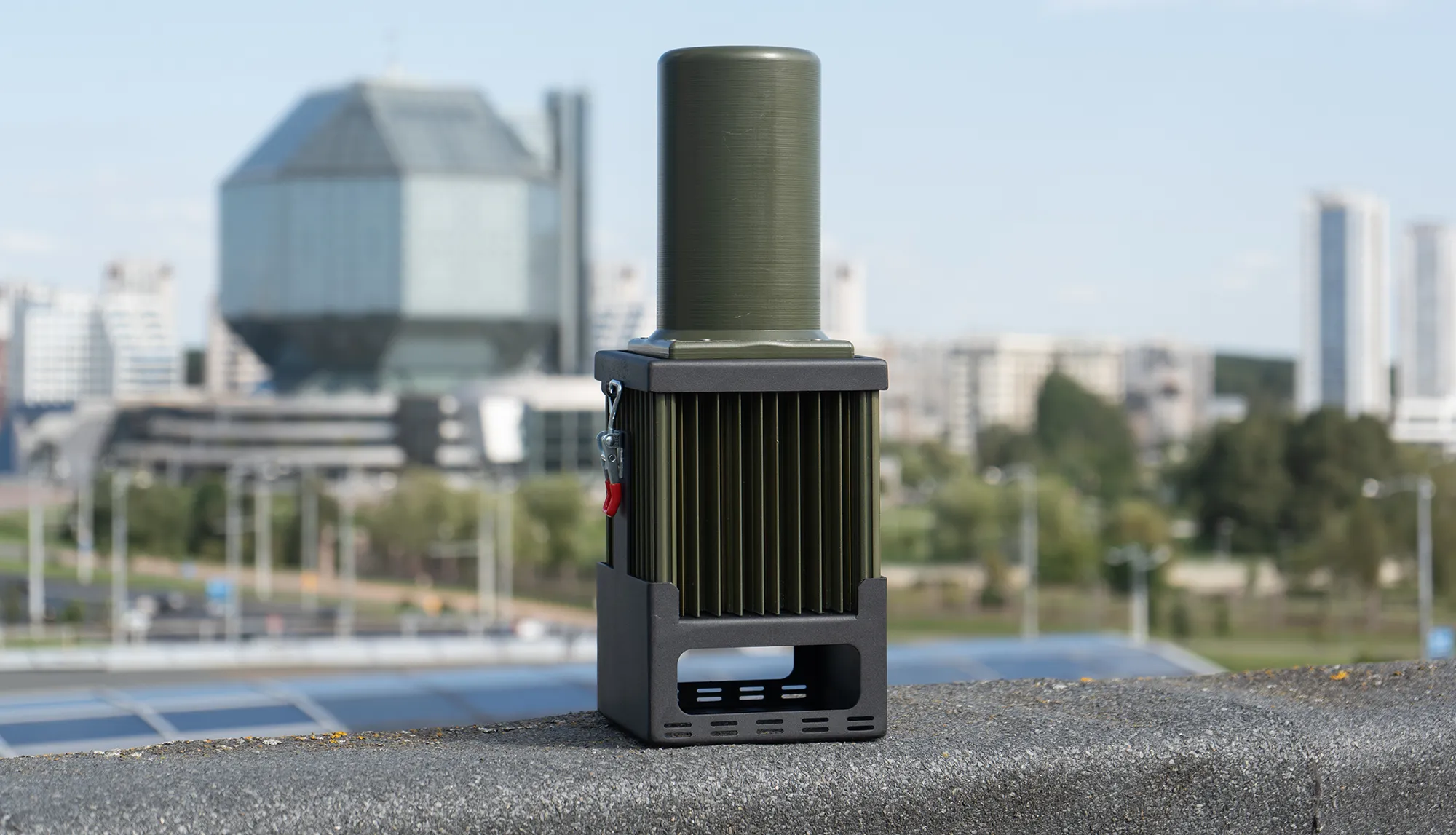

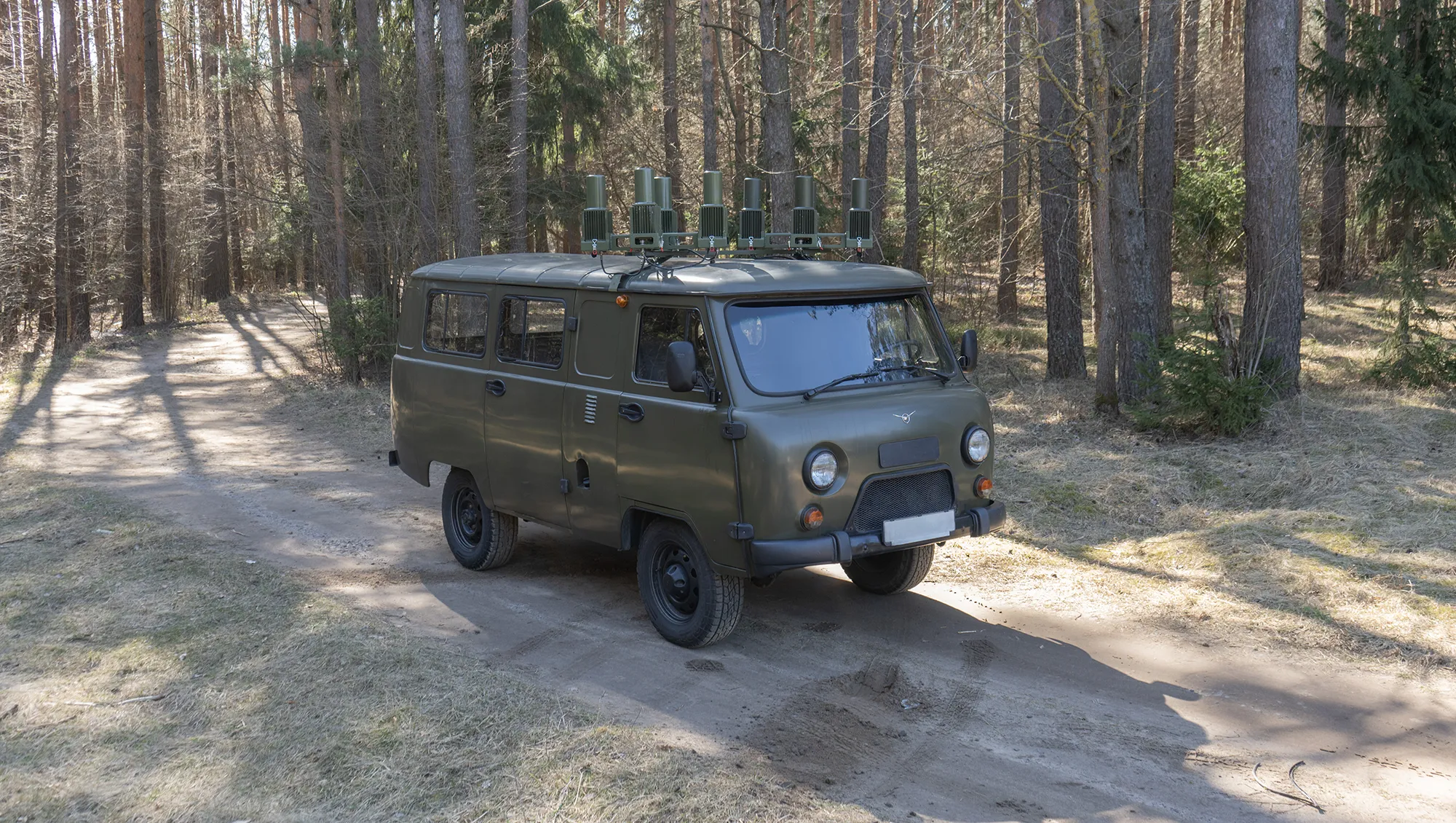

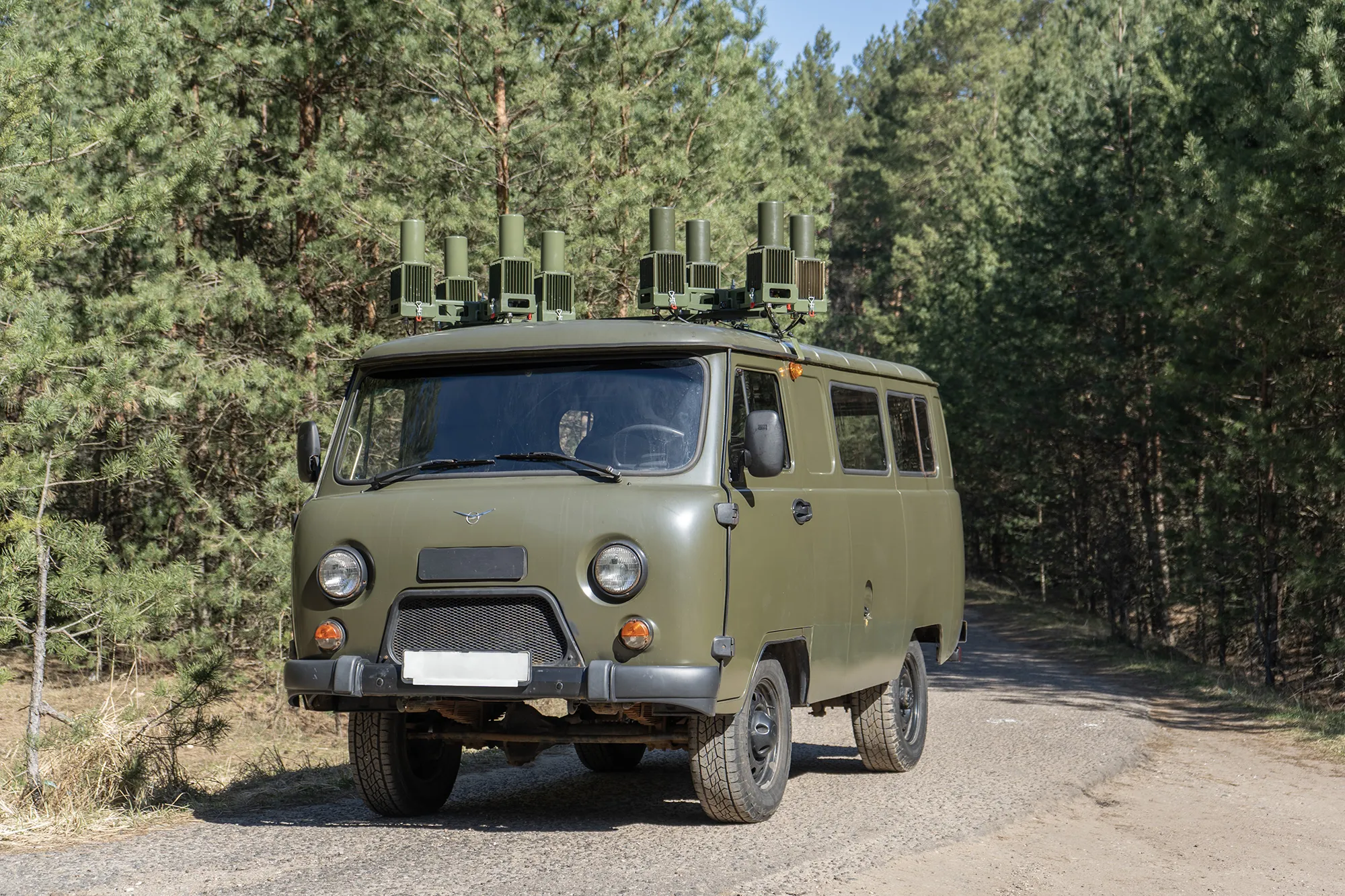

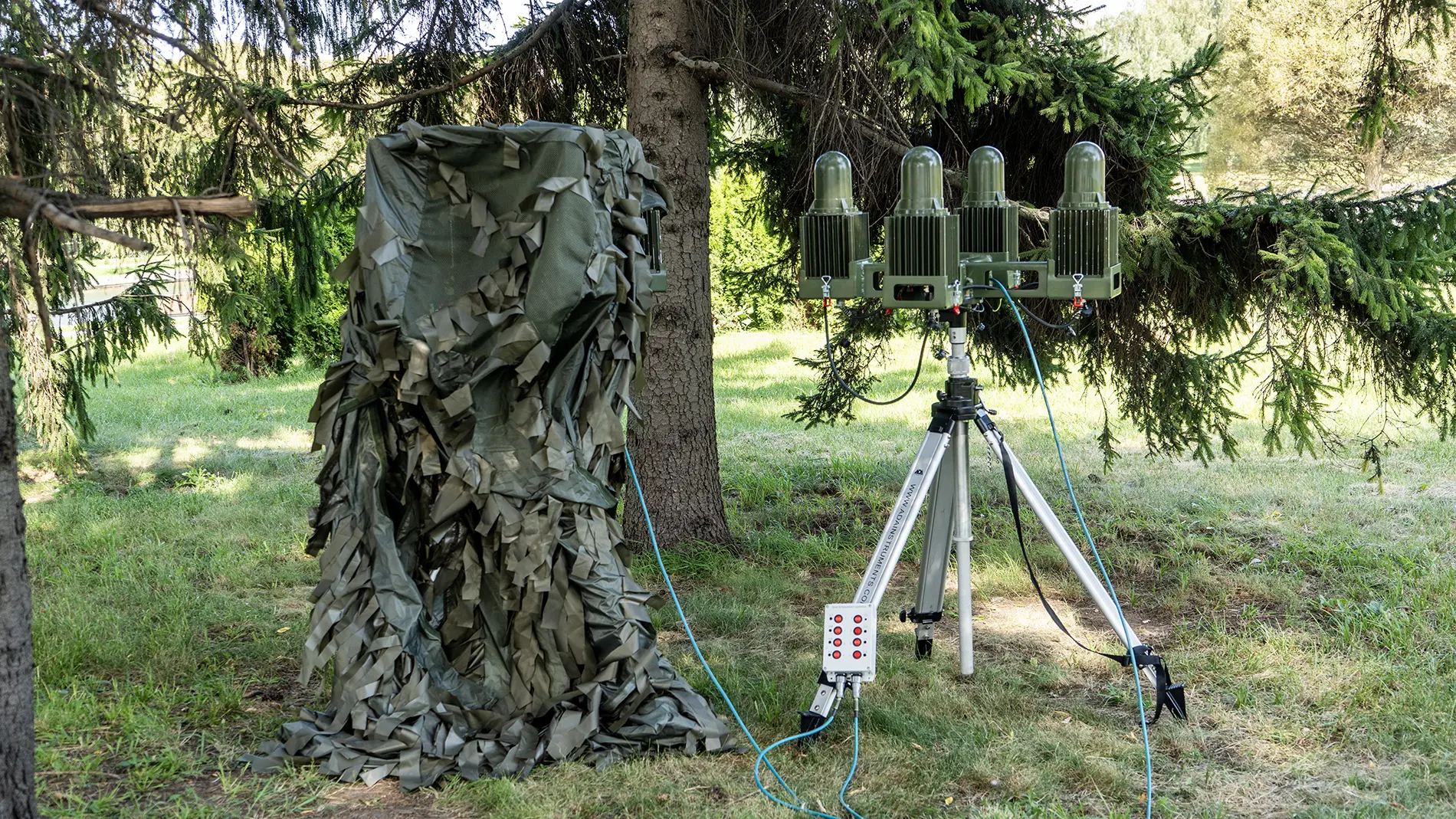

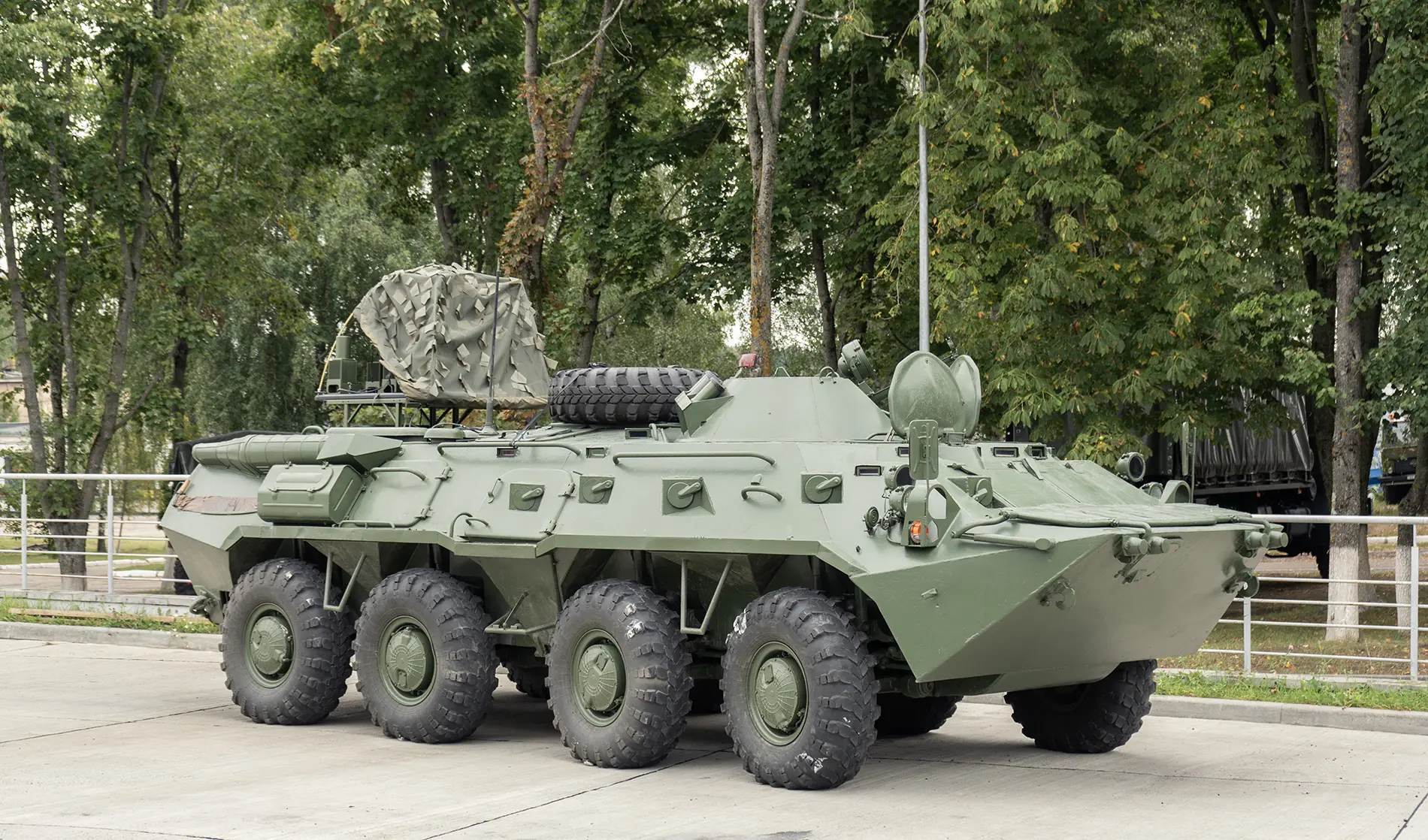

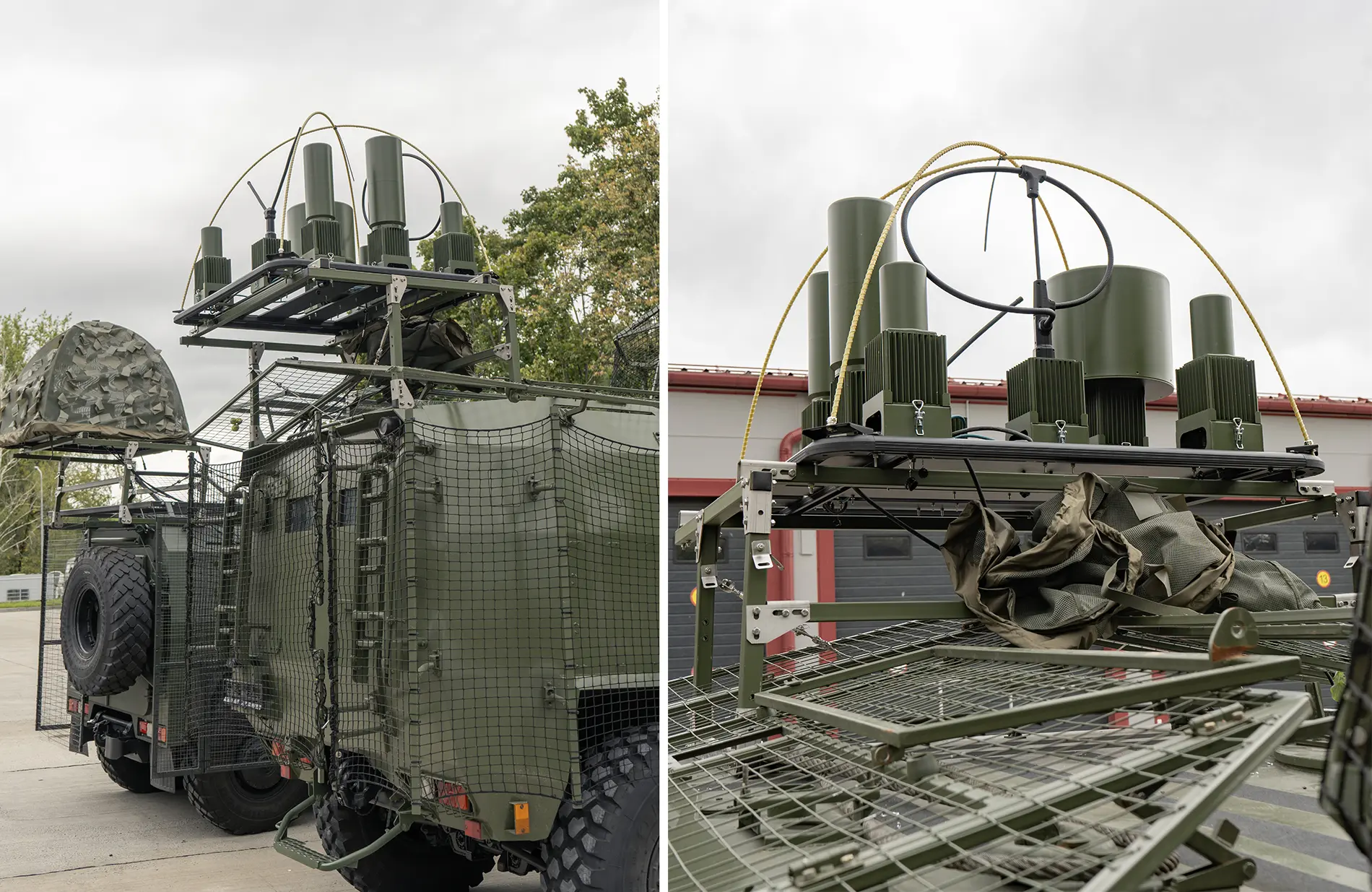

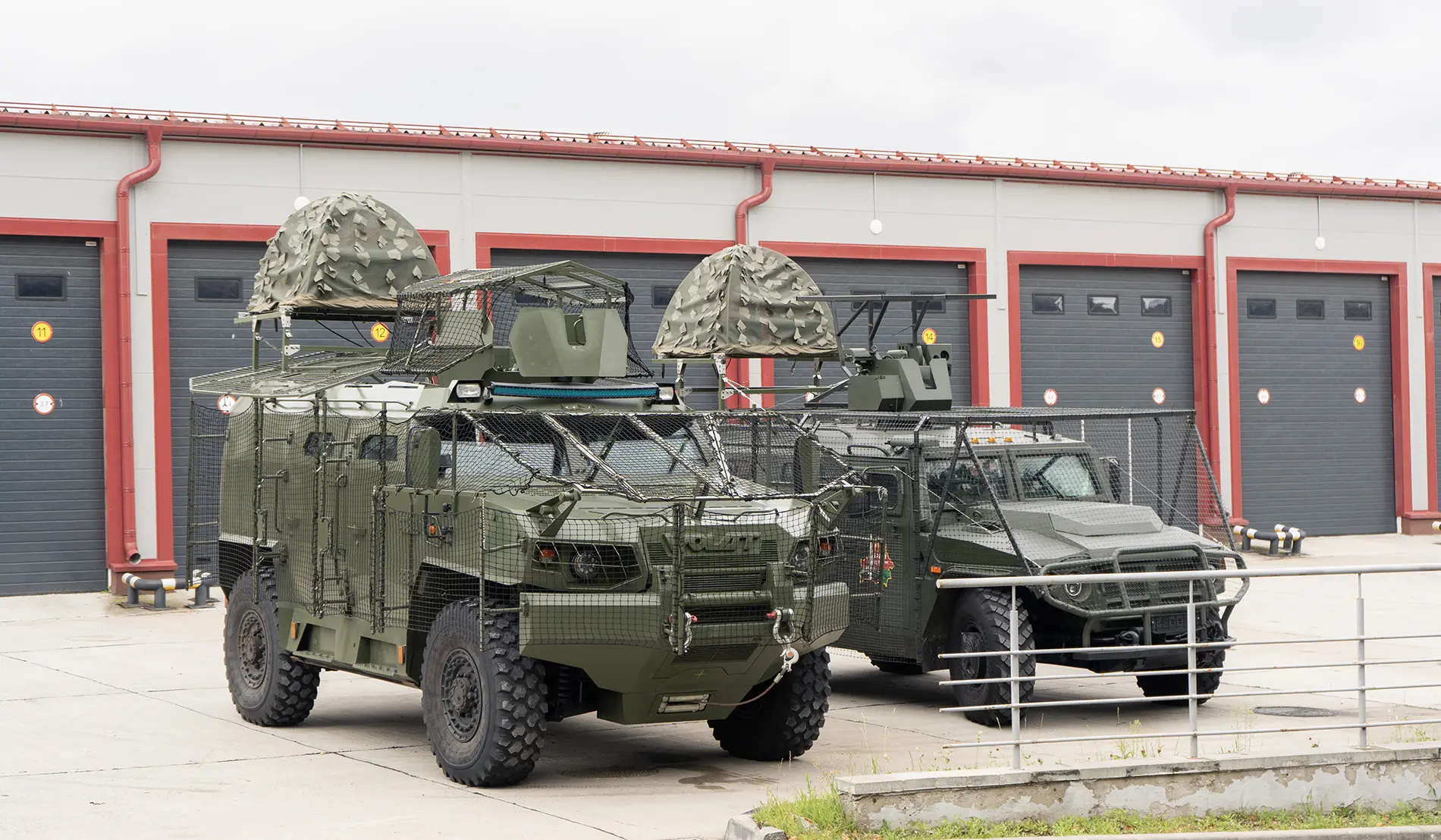

Protection of vehicles, armored assets, special equipment and fixed installations against combat use of enemy multicopters and FPV drones by jamming their control signals, data transmission and navigation. The set consists of 8–14 blockers.

Specifications

Parameters	Value
Frequency bands:
0.1 sub-band	120–200 MHz
0.2 sub-band	200–300 MHz
0.3 sub-band	300–400 MHz
0.4 sub-band	400–500 MHz
0.5 sub-band	500–600 MHz
0.6 sub-band	600–700 MHz
0.7 sub-band	700–800 MHz
0.8 sub-band	800–900 MHz
0.9 sub-band	900–1020 MHz
2.4 sub-band	2380–2500 MHz
5.2 sub-band	5150–5250 MHz
5.8 sub-band	5725–5875 MHz
1.2 sub-band (GPS (L2, L5); GLONASS (L2, L3); Galileo (E5, E6); Beidou (В2, В3); SBAS (L5))	1166–1294 MHz
1.6 sub-band (GPS (L1); GLONASS (L1); Galileo (E1); Beidou (В1); SBAS (L1))	1559–1606 MHz
Blocker output power in each frequency sub-band	minimum 40 W (for sub-band 1.6 — minimum 20 W)
Transmitting antennas beam pattern in horizontal plane	circular
Multicopter navigation receiver jamming zone radius	minimum 1000 m
Control channel jamming zone radius at communication distance of minimum 2000 m:
for multicopters of CE standard	minimum 500 m
for FPV-drones	minimum 200 m
Power supply	batteries; network 220 V 50 Hz; on-board network 12/24 V
