Designation

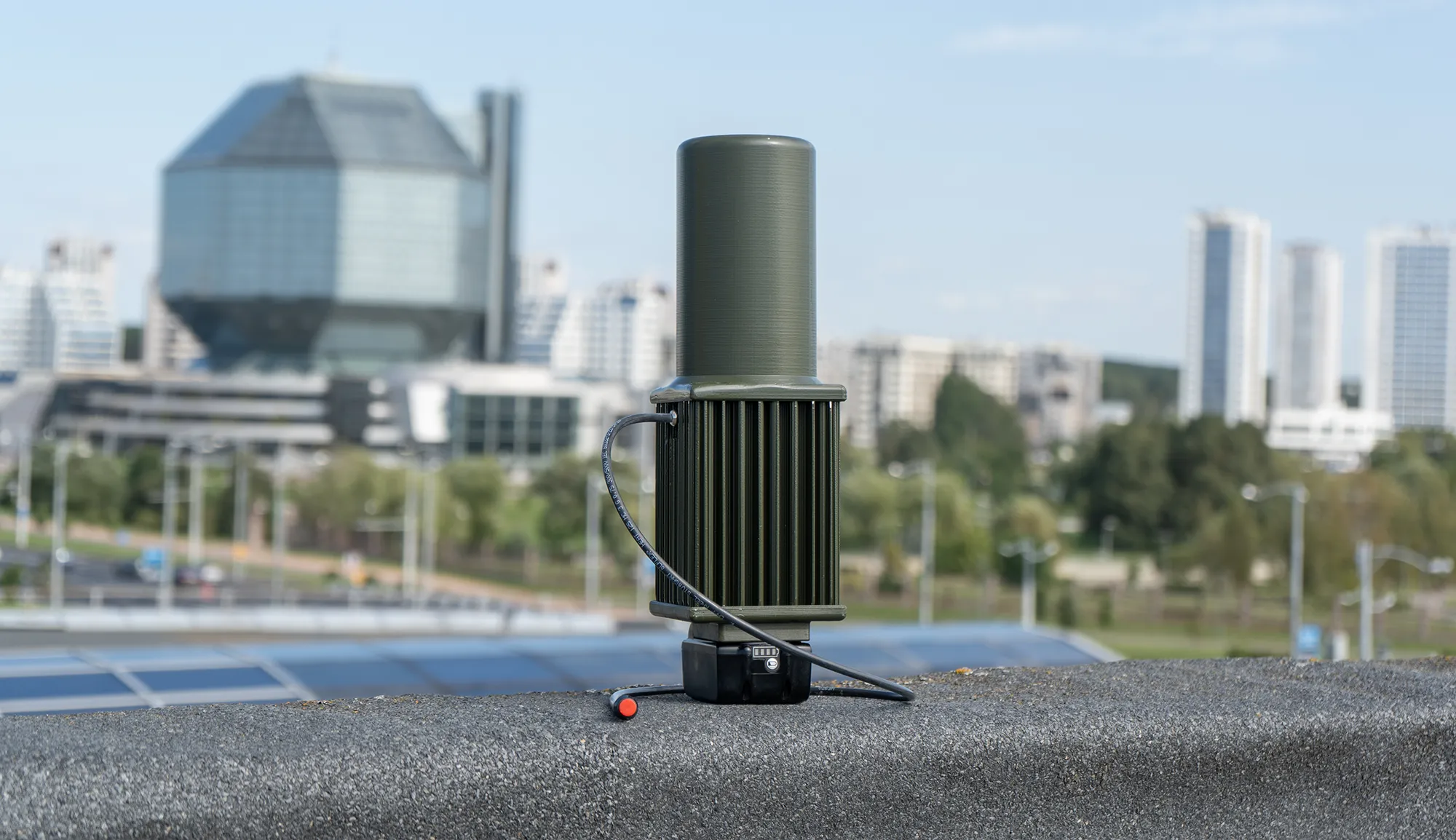

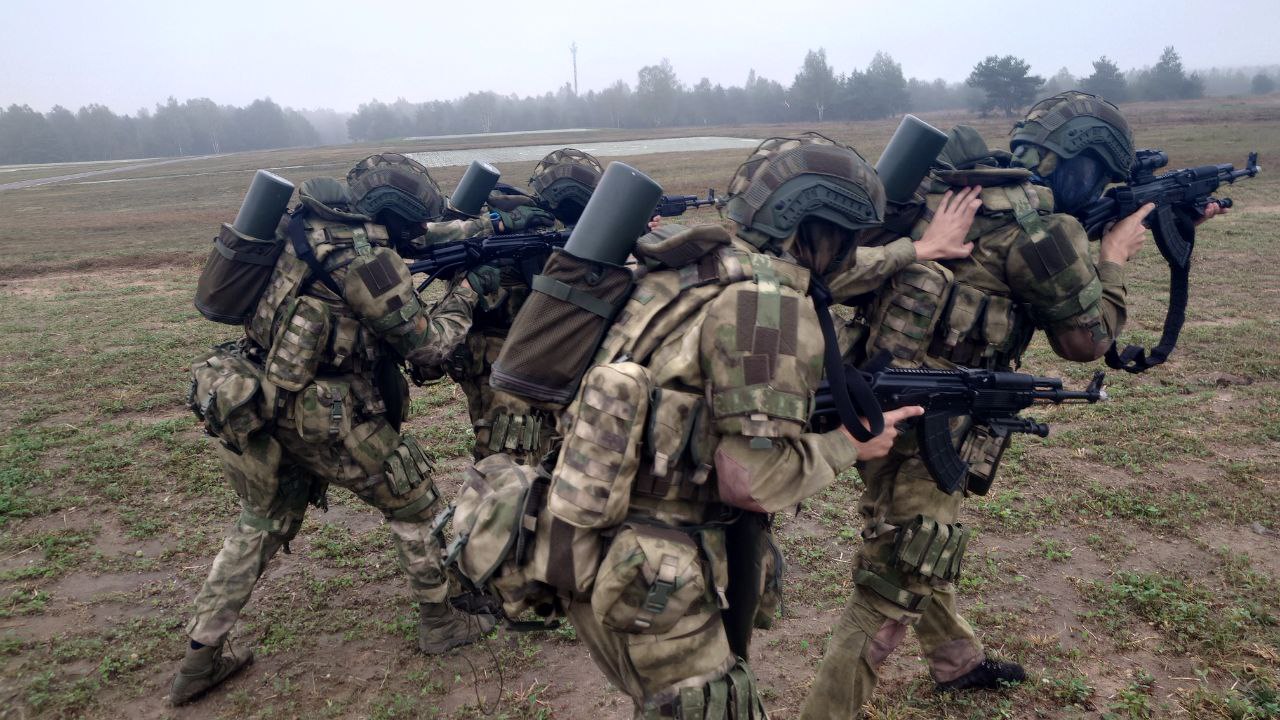

Protection of a group of military personnel against combat use of enemy multicopters and FPV drones by jamming their control signals, data transmission and navigation. The set consists of 8–12 blockers.

Specifications

Parameters	Value
Frequency bands:
0.3 sub-band	300–400 MHz
0.4 sub-band	400–500 MHz
0.5 sub-band	500–600 MHz
0.6 sub-band	600–700 MHz
0.7 sub-band	700–800 MHz
0.8 sub-band	800–900 MHz
0.9 sub-band	900–1020 MHz
2.4 sub-band	2380–2500 MHz
5.2 sub-band	5150–5250 MHz
5.8 sub-band	5725–5875 MHz
1.2 sub-band (GPS (L2, L5); GLONASS (L2, L3); Galileo (E5, E6); Beidou (В2, В3); SBAS (L5))	1166–1294 MHz
1.6 sub-band (GPS (L1); GLONASS (L1); Galileo (E1); Beidou (В1); SBAS (L1))	1559–1606 MHz
Blocker output power in each frequency sub-band	minimum 20 W
Transmitting antennas beam pattern in horizontal plane	circular
Multicopter navigation receiver jamming zone radius	minimum 500 m
Control channel jamming zone radius at communication distance of minimum 2000 m:
for multicopters of CE standard	minimum 300 m
for FPV-drones	minimum 100 m
Power supply	battery
Battery life	minimum 60 min
